Specification |
|
|
Model |
PSQ26 |
|
Night Vision |
|
|
Magnification |
1X |
|
Field of View |
40° ± 2° |
|
Focus Range |
280mm - ∞ |
|
Objective Focus |
26 mm |
|
F-number |
F1.2 |
|
Resolution |
48-56lp/mm |
|
Exit pupil diameter |
7mm |
|
Exit pupil distance |
18mm |
|
Diopter setting |
-4, +4 |
|
Power supply |
5-10 V |
|
Infrared Thermal |
|
|
Magnification |
1x (E-Zoom:2x, 4x) |
|
Objective focus |
15mm |
|
Display |
800*600 pixel |
|
Field of View |
24.6° × 18.5° |
|
Sensor (microbolometer) |
384 * 288 - 17µm * 17µm |
|
F-number |
F0.9 |
|
Polarity control |
White hot / Black hot / Multiple Color Modes |
|
Power Supply |
5-12 V |
|
Overall Unit Specification |
|
|
Magnification |
1X |
|
Objective/Eyepiece |
Manual Focus |
|
Weight |
≤480g |
|
Power supply |
2*CR123 lithium battery / 3.7V |
|
Fused working time |
2 hours |
|
Low light working time |
60 hours |
|
Working temperature |
-40℃ to +50℃ |
|
Waterproof rate |
IP67 |
|
Measurement |
160*68*101 mm |
|
Mean time between failures |
≥500h |
Features
Hand held or head/helmet mountable

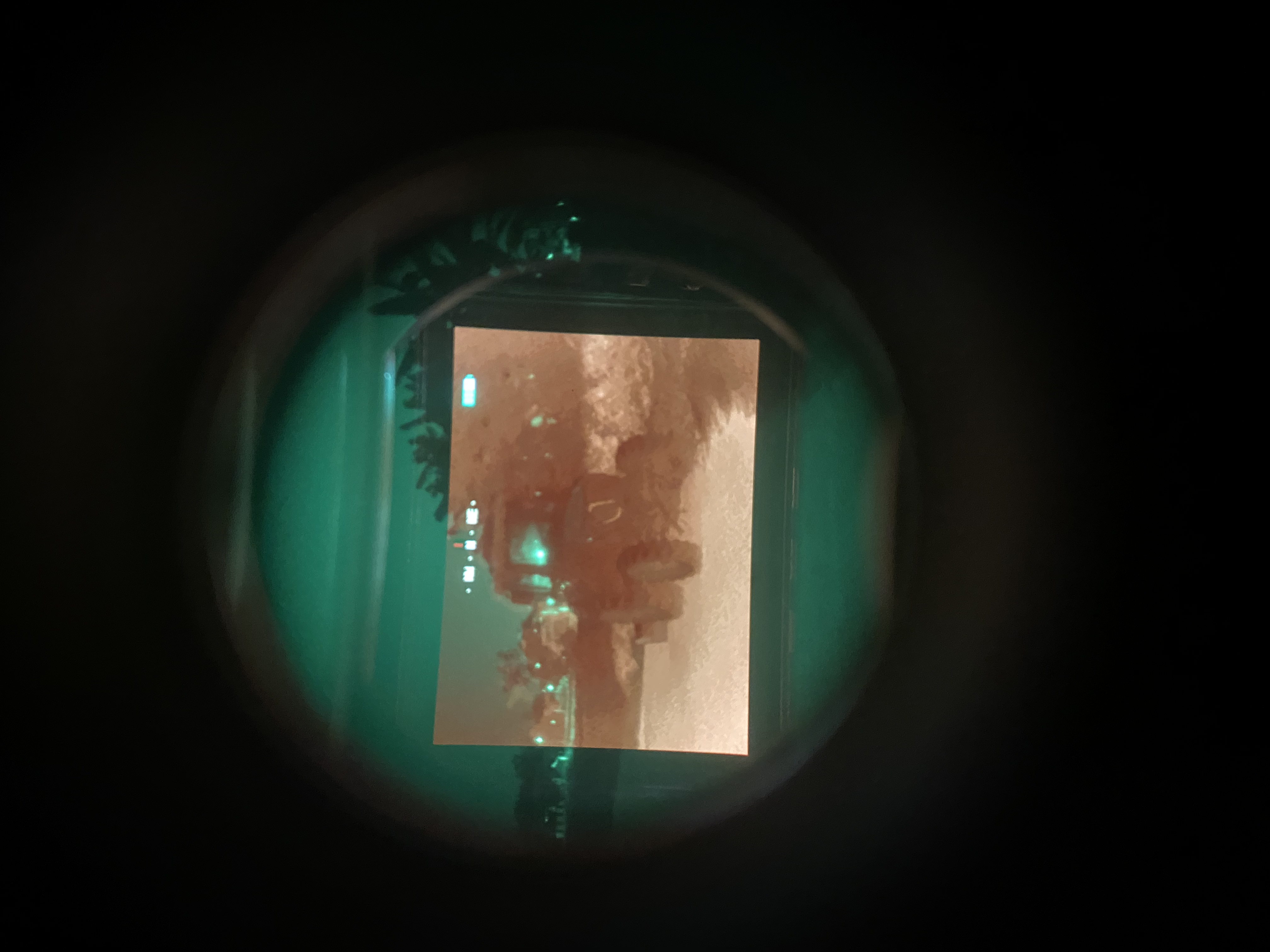

lmages from NV or TI channels can be used separately or dichoptically fused
High quality optics
Can be attached to the optional helmet mount
Waterproof
